PET Crushing Washing Recycling System
High-efficiency PET washing line for producing clean PET flakes from waste plastic bottles.
Installation and on-site training supported.
Key machines in the PET washing line

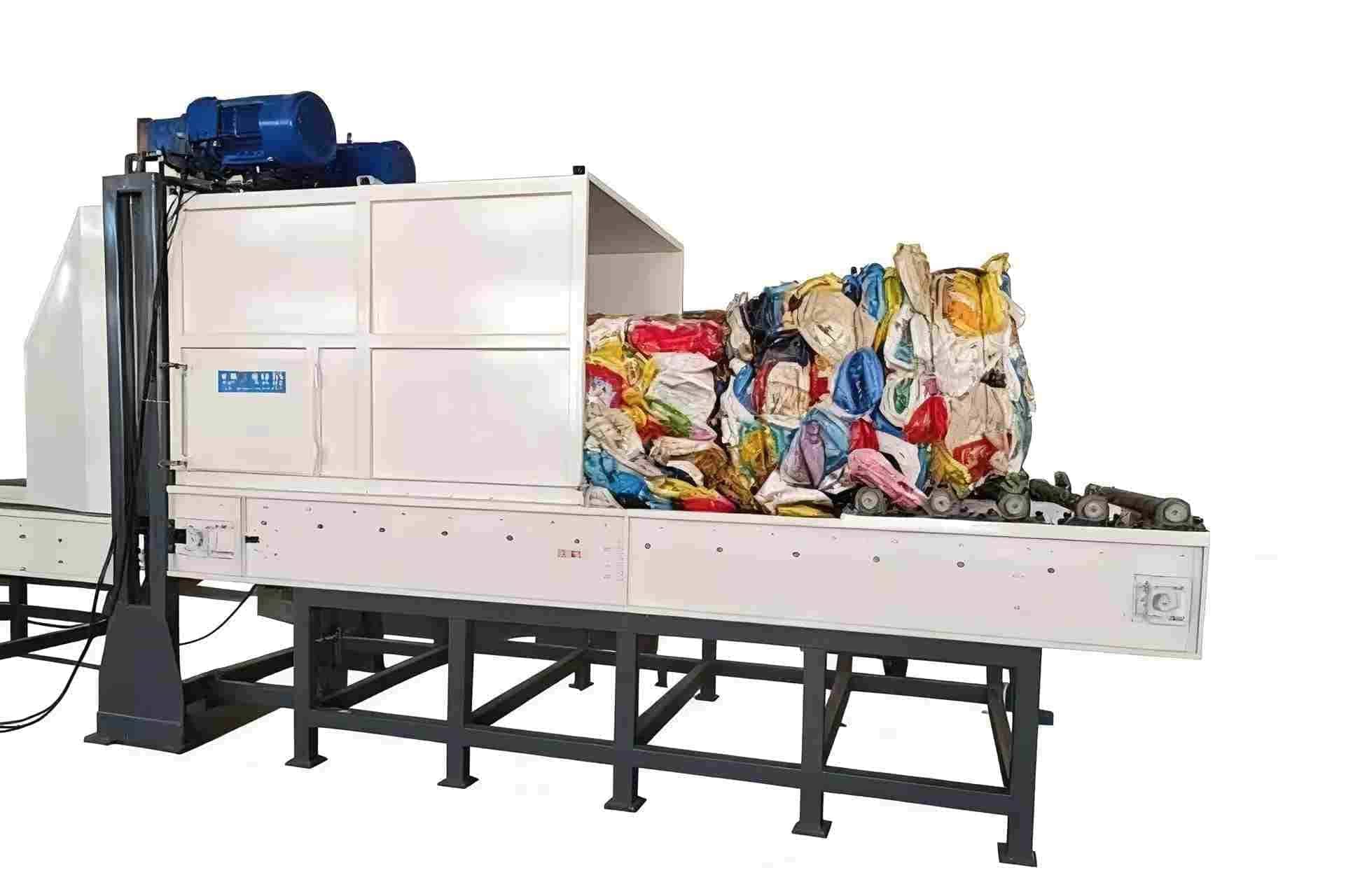

Bale opener / belt conveyor
Opens PET bottle bales and feeds bottles evenly to protect downstream machines and keep stable capacity.

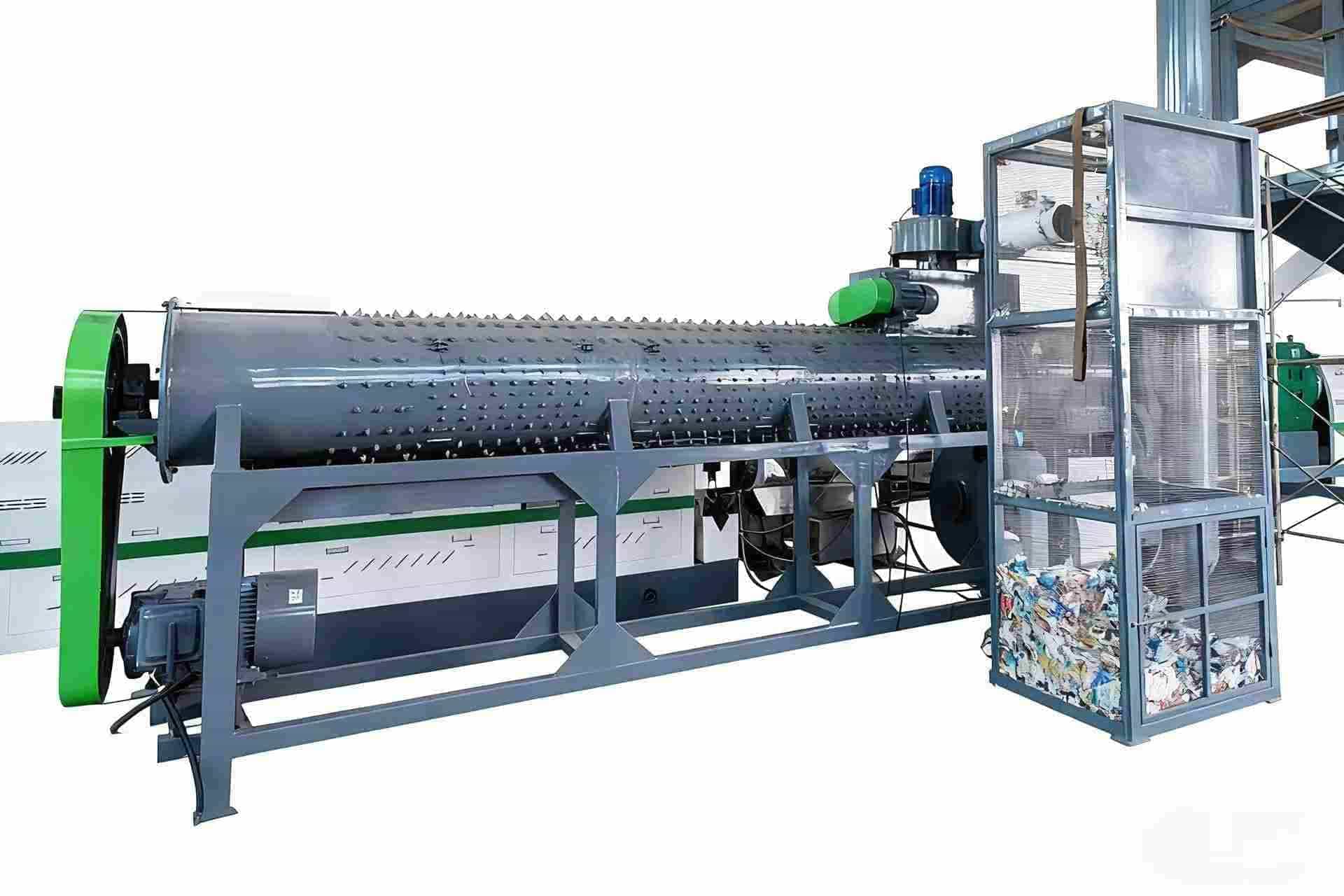

Label remover
Removes PVC / paper labels before crushing, reducing label and glue content in final PET flakes for higher selling price.

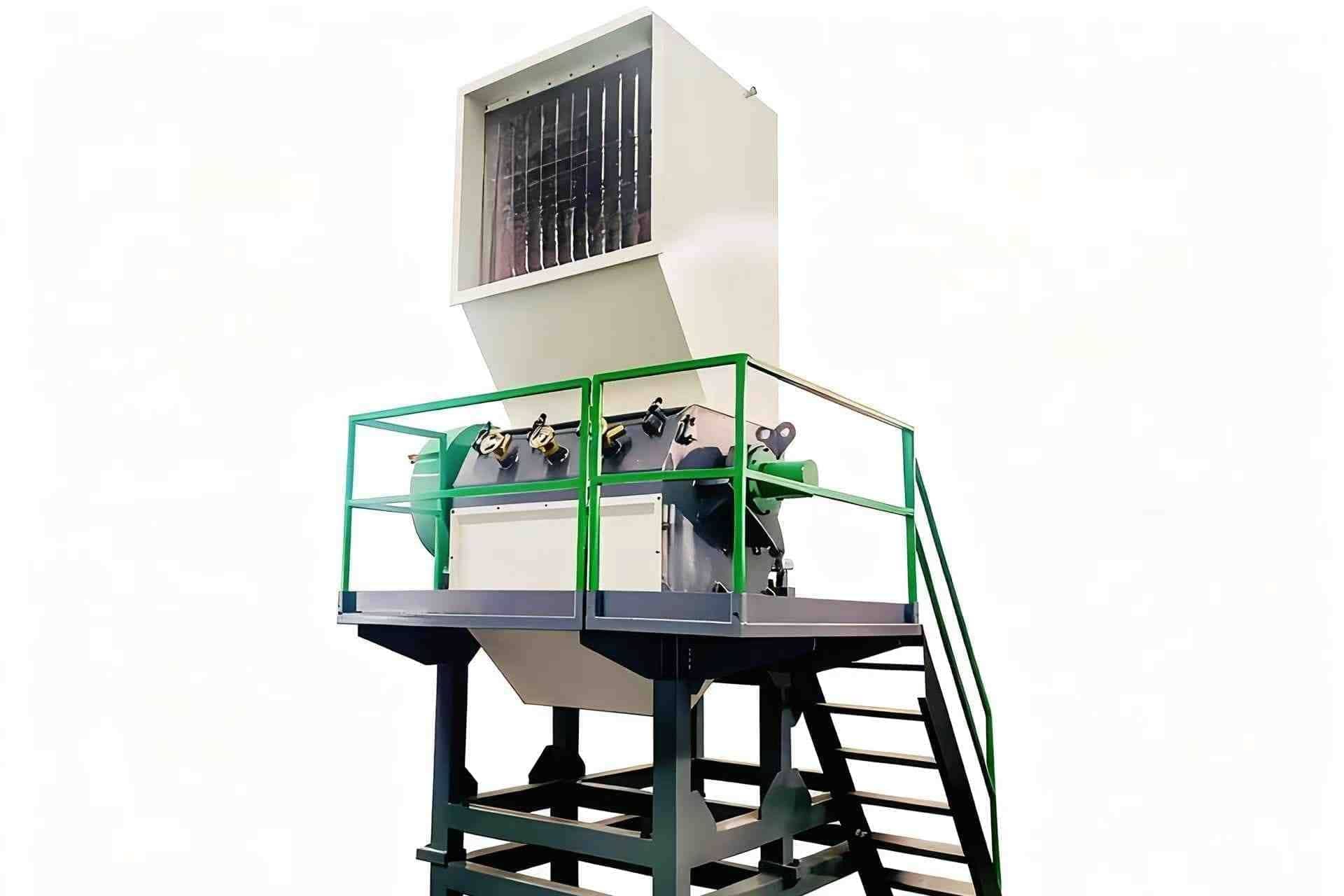

Crusher
Crushes bottles into uniform flakes with stainless steel contact parts and water spraying for pre-washing and size reduction.

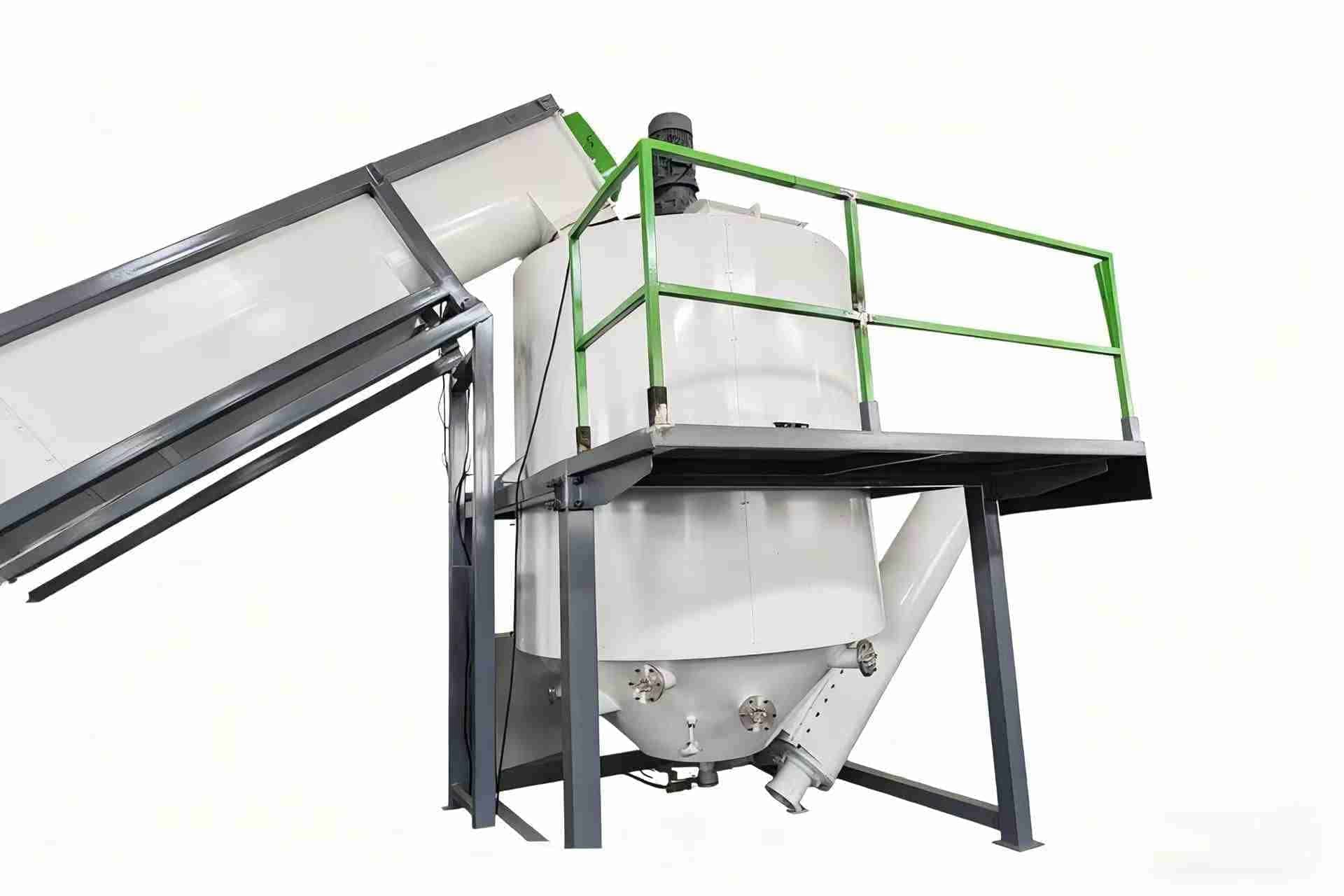

Hot washer
High-temperature washing with caustic solution to remove oil, dirt and strong glue, improving flakes quality for bottle-grade or fiber use.

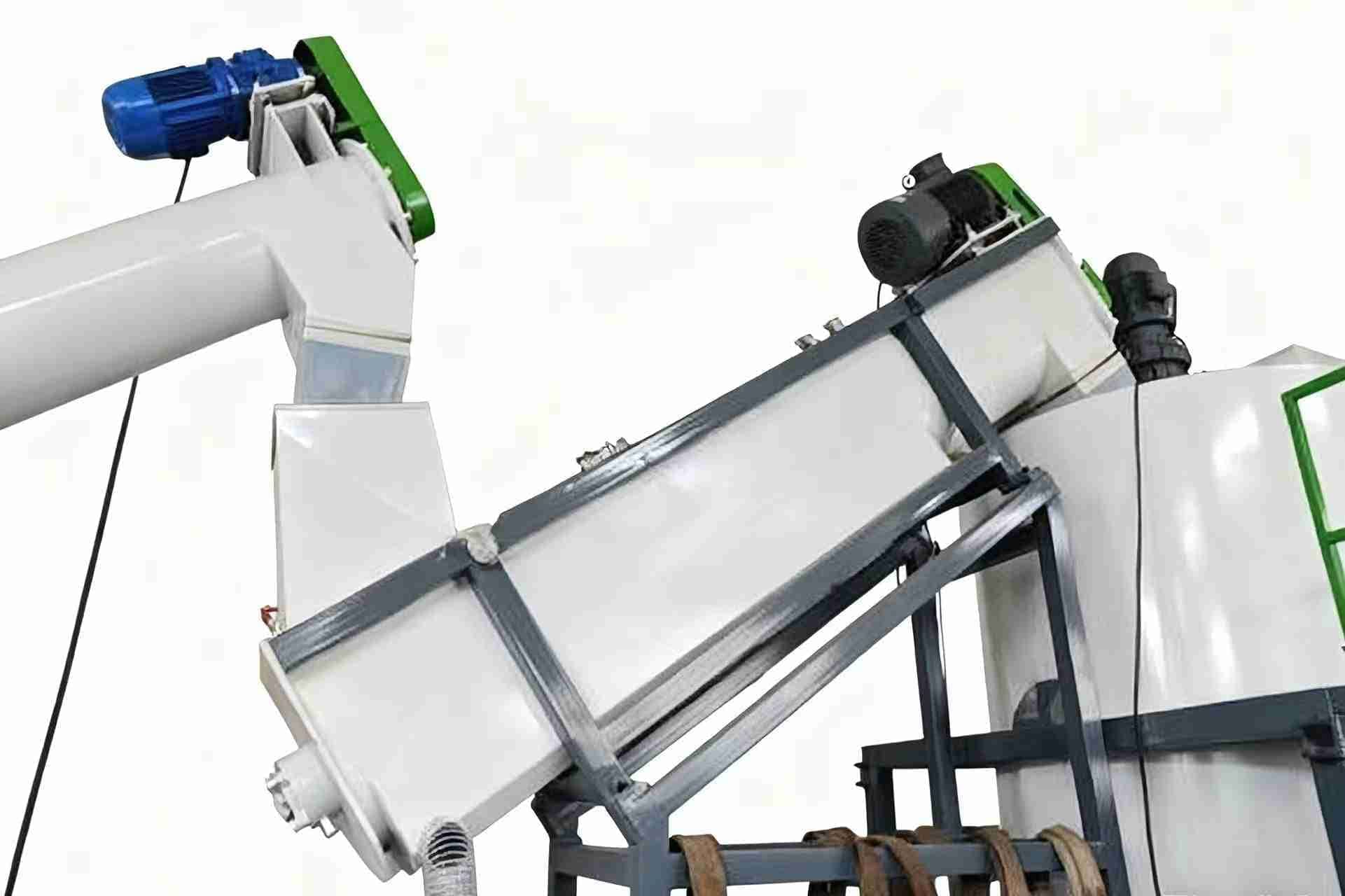

Friction washer
High-speed friction cleaning to scrub remaining labels, sand and small contaminants attached to PET flakes.

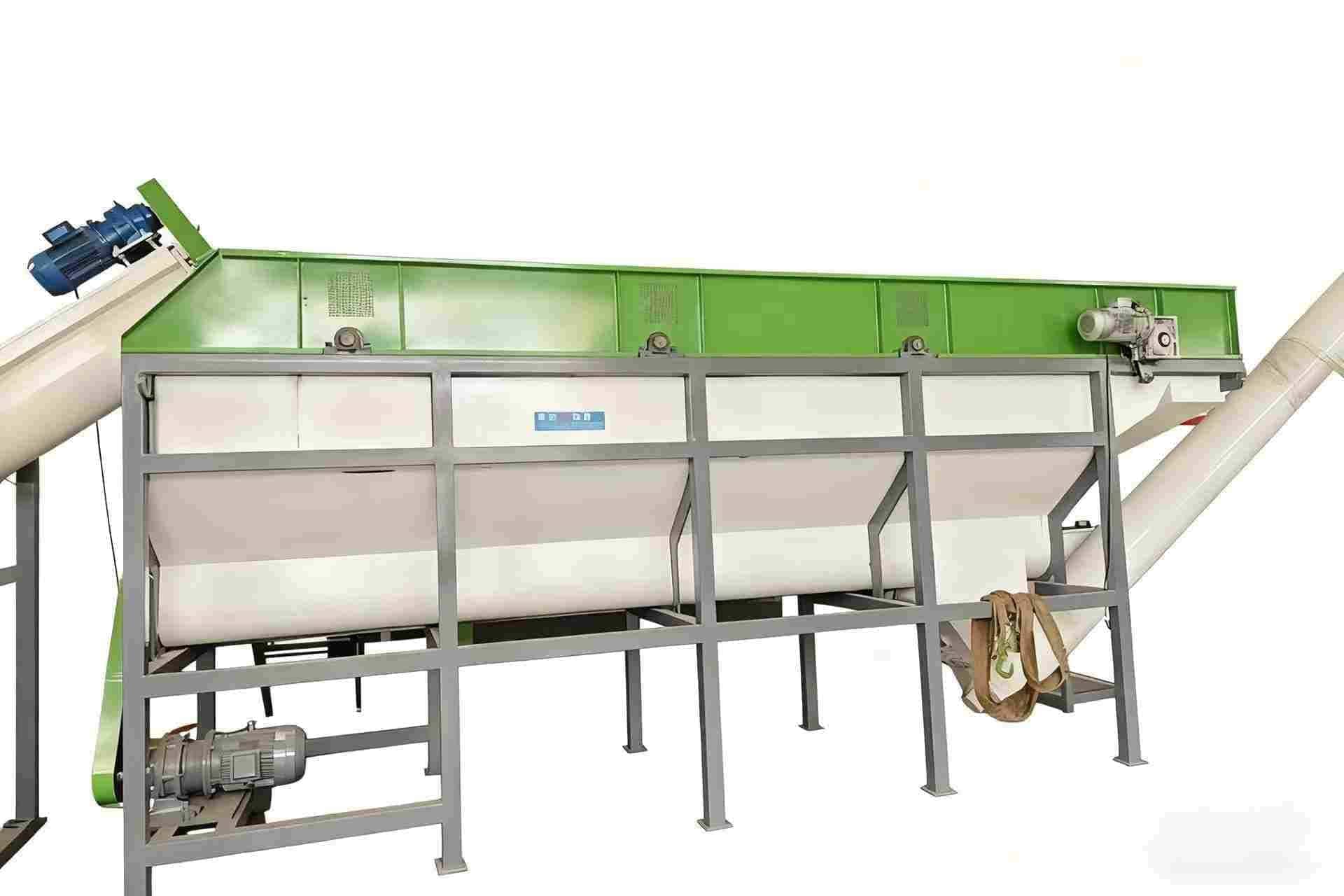

Floating washing tank
Separates PET from PP / PE caps and labels using the float-sink principle, improving flakes purity by density separation.

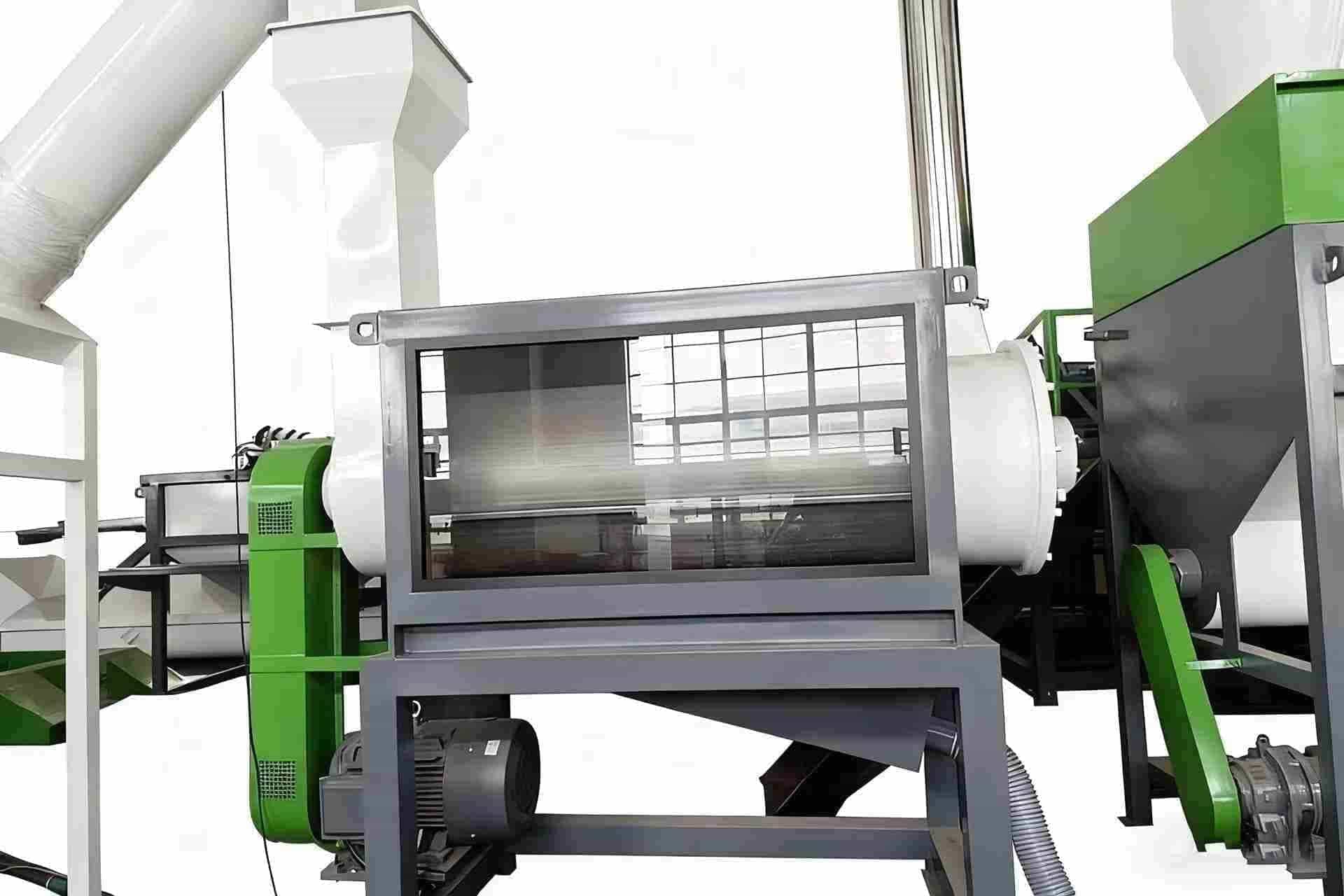

High speed dewatering machine
Centrifugal drying reduces moisture content to below 1.0% before storage or pelletizing.

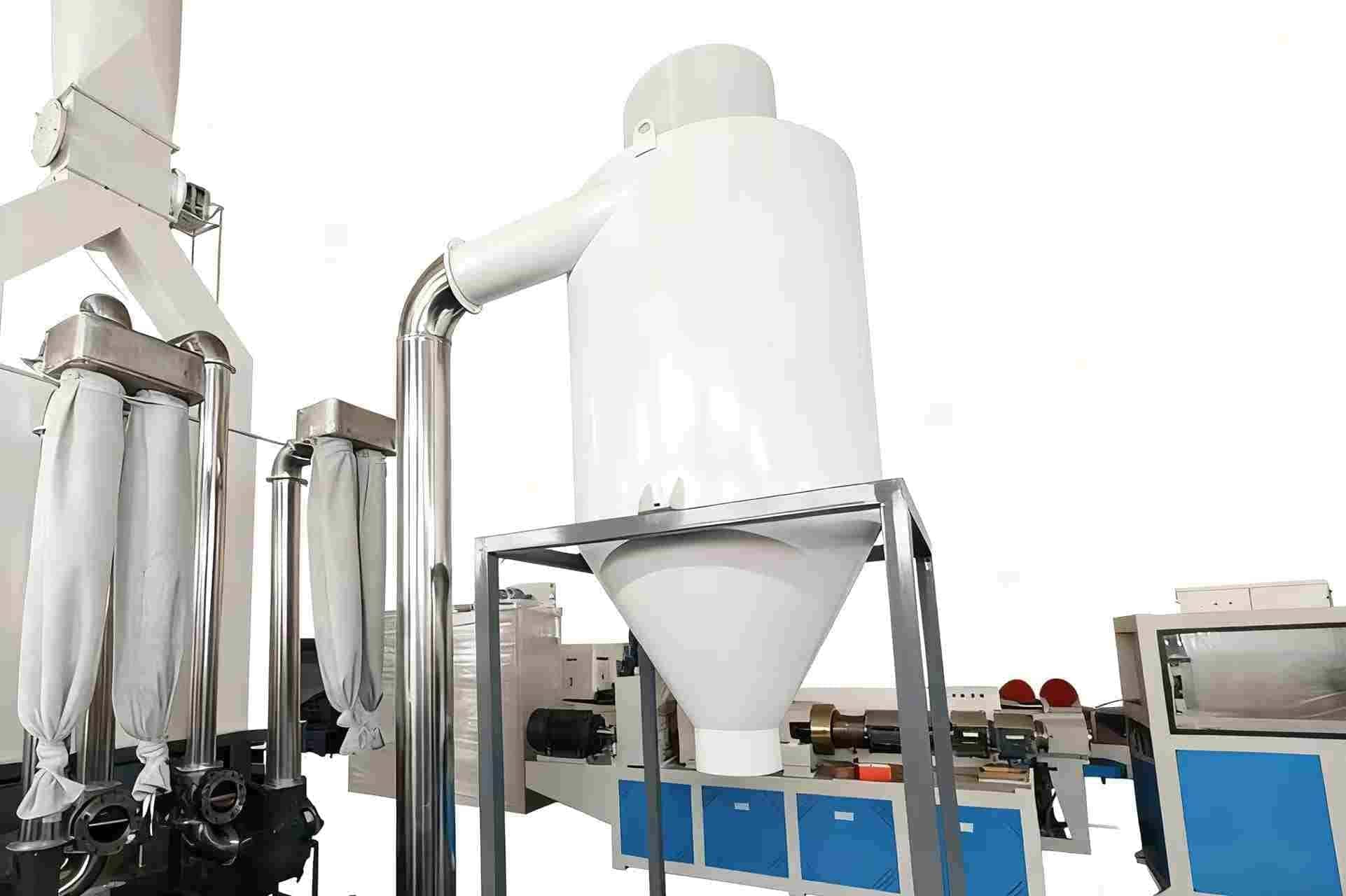

Cyclone silo & storage
Conveys dried PET flakes into silos for buffer storage, ready for bagging or feeding to PET pelletizing lines.
Request a quotation or a plant proposal
Tell us your material, contamination, target capacity and utilities — we’ll design the right line for you.

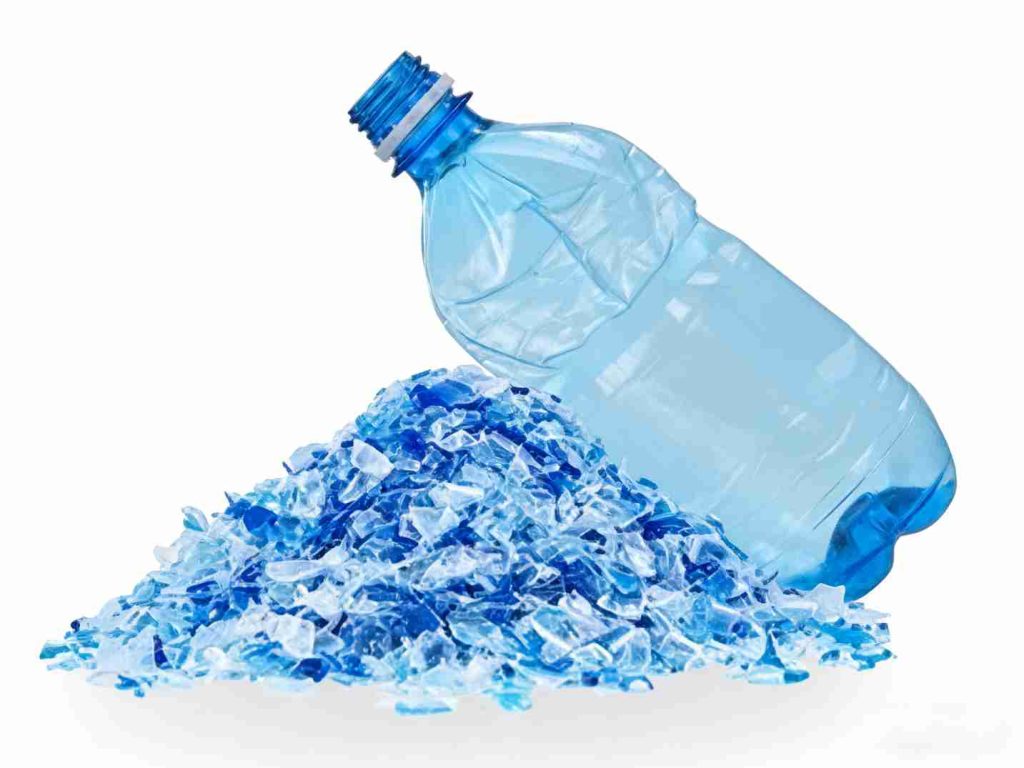

Waste PET bottles are first collected and processed through crushing, washing, and separation stages. After removing labels, caps, and impurities, the bottles are cleaned and shredded into uniform PET flakes. These clean PET flakes can be further pelletized or reused directly for manufacturing new plastic products.
Each plastic material washing project is customized. These examples show typical capacities and configurations in different markets.

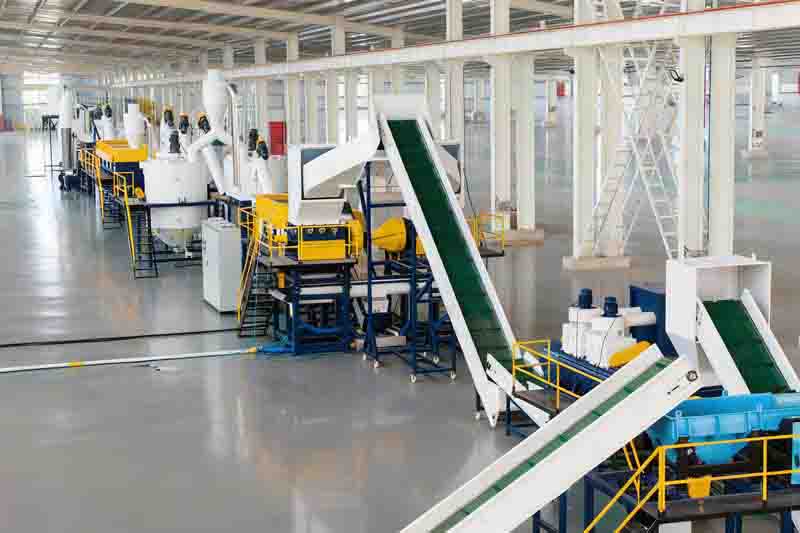

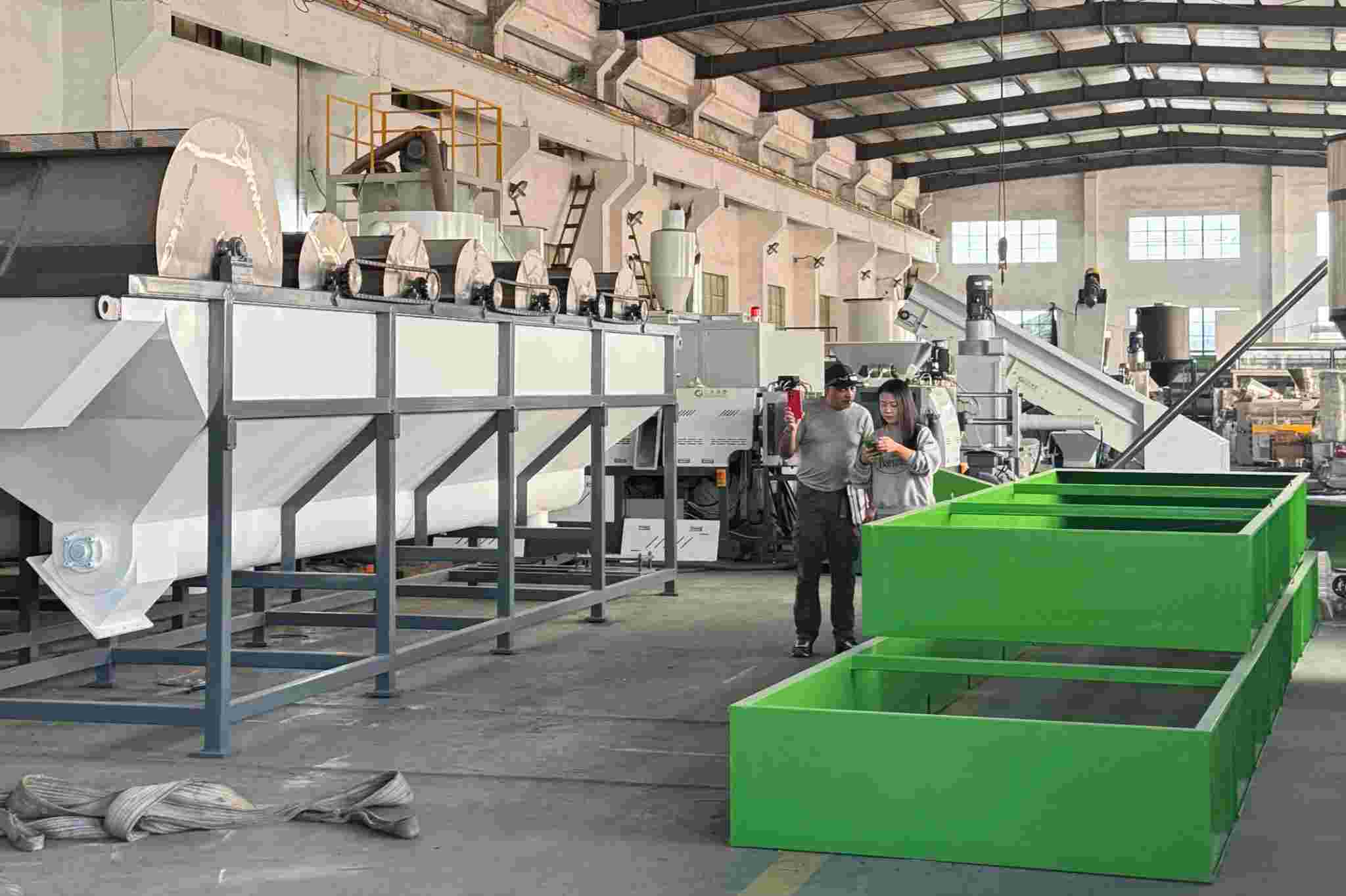

PET bottles washing line
Overseas customers visited our factory to test the PET bottles washing line. Our team demonstrated the full washing process, and the clients were pleased with the stable performance and clean final output.
PET bottles washing line
Customers came to our factory to inspect the PET bottles washing line. We introduced each section of the machine, and they recognized the reliable build quality and output performance of the equipment.
PET bottles washing line
Customers visited our workshop to inspect the PET bottle washing line under production. They walked through each section and were satisfied with the robust design and overall manufacturing quality.
APPLICABLE MATERIALS
TECHNICAL DATA
| Type | Capacity (kg/h) | Energy consumption (kW/h) | Steam consumption (kg/h) | Chemical consumption (kg/h) | Water consumption (ton/h) | Installation power (kW) | Space (m²) | Man power (persons/shift) |
|---|---|---|---|---|---|---|---|---|
| PET500 | 500 | 70 | 300 | 10 | 0.7 | 190 | 500 | 10 |
| PET1000 | 1000 | 140 | 500 | 12 | 1.5 | 340 | 700 | 12 |
| PET2000 | 2000 | 280 | 800 | 16 | 3 | 390 | 1000 | 16 |
| PET3000 | 3000 | 350 | 1000 | 25 | 4.5 | 520 | 1200 | 18 |
