Waste Film Washing Recycling System
High-efficiency PP film washing line for cleaning and recycling post-consumer plastic film.
Installation & on-site training available.
Brief Description

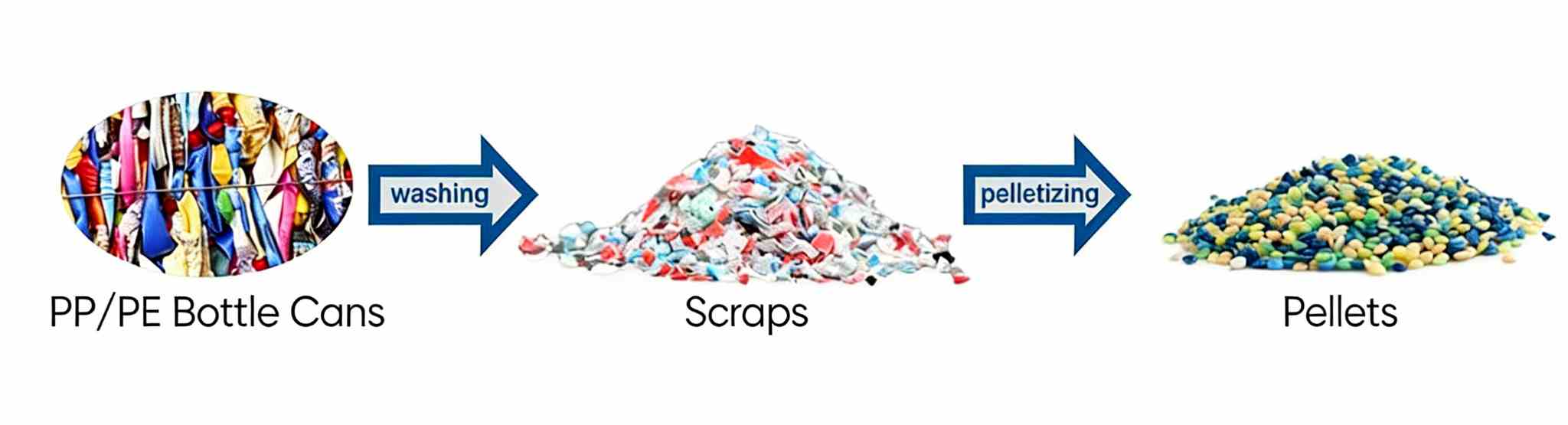

The HDPE washing recycling system is designed to process various types of HDPE waste plastics. The treated HDPE can be used for the production of plastic granules and plastic products.
HDPE plastics are primarily used in the manufacturing of various packaging materials, notably bottles and barrels.
Typically, large-sized HDPE materials require shredding before processing, while smaller-sized HDPE materials can be directly crushed.
The presence of different impurity residues varies depending on the application of HDPE materials in different settings. Accordingly, we can design and adjust the corresponding plant to accommodate these impurity residues.
Additionally, the HDPE washing recycling line is also suitable for recycling similar-sized PP materials.
Request a quotation or a plant proposal
Tell us your material, contamination, target capacity and utilities — we’ll design the right line for you.
Key Machines in the PET Washing Line

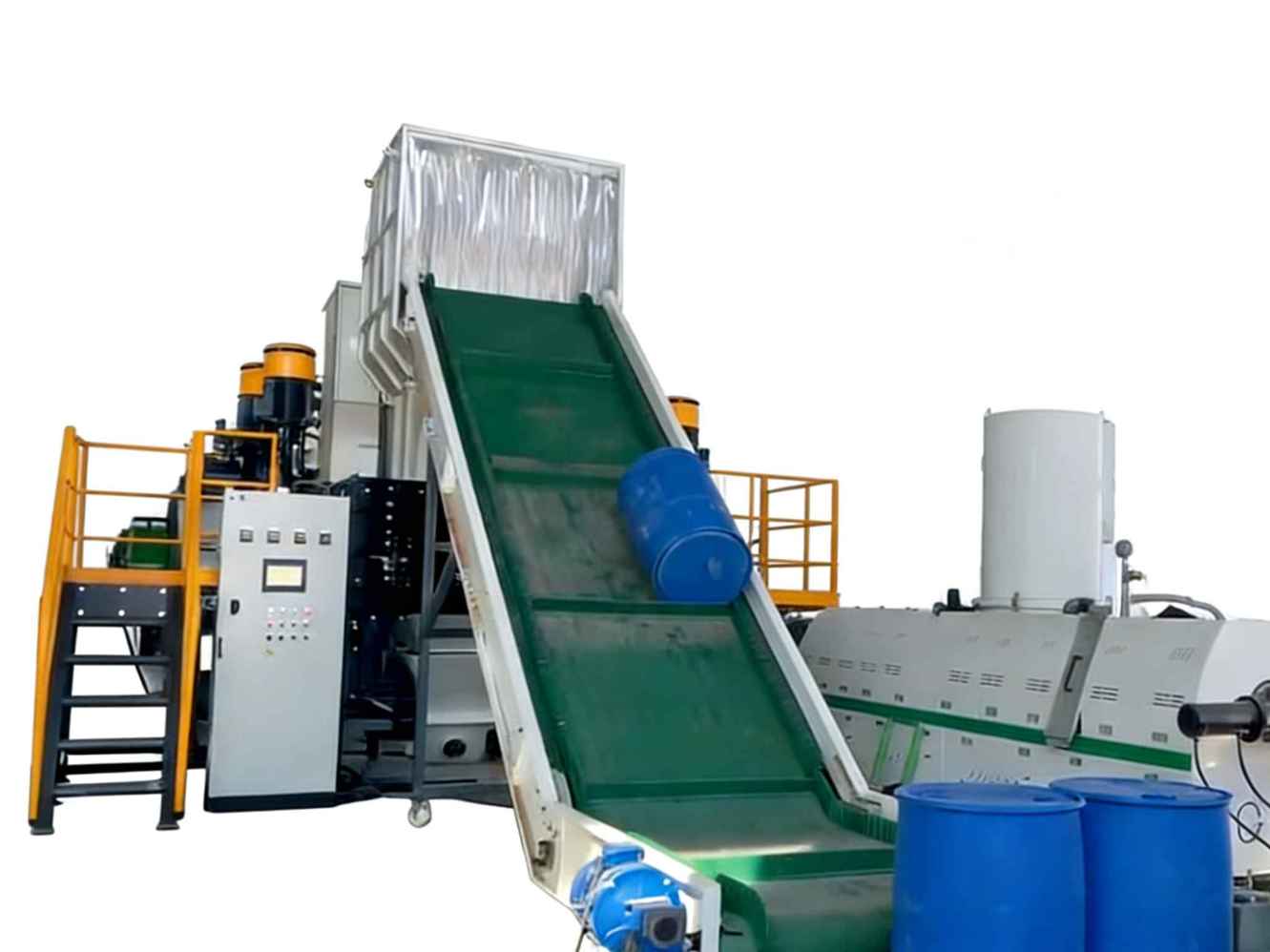

Belt Conveyor
Used for conveying material, the surface of the belt is equipped with anti-slip devices and the height is adjustable.

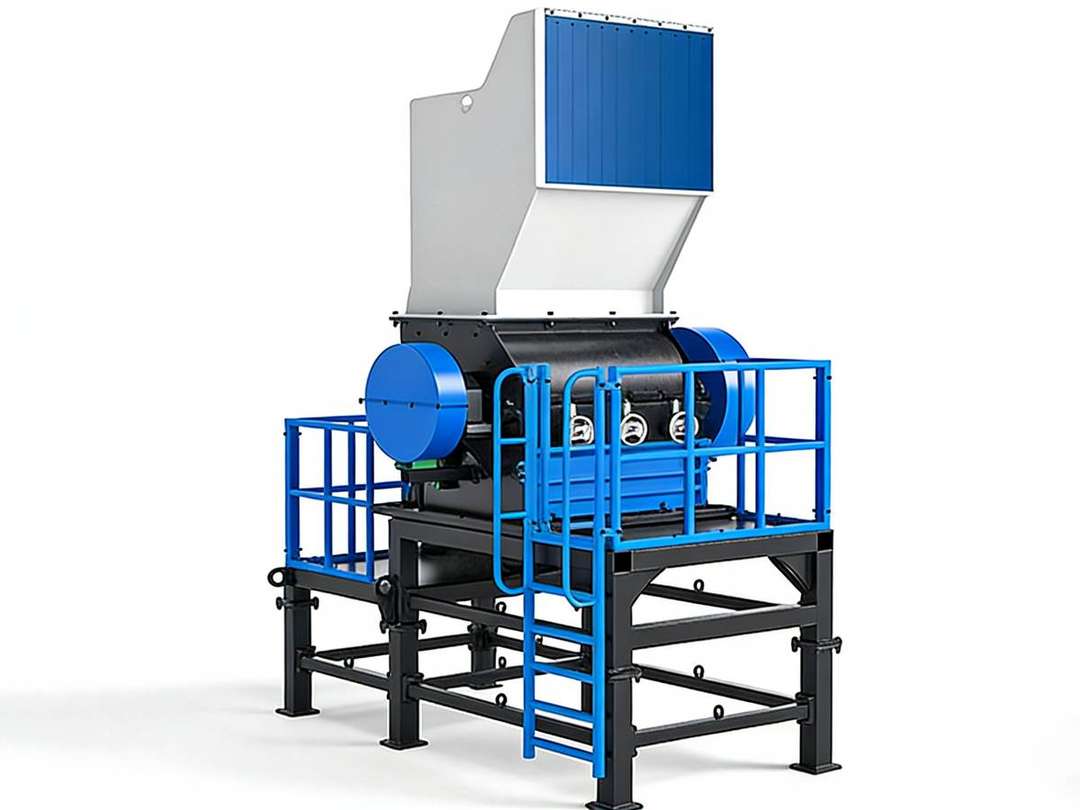

Crusher
To crush the raw material into smaller pieces with water added during the process. The blade material is SK11.

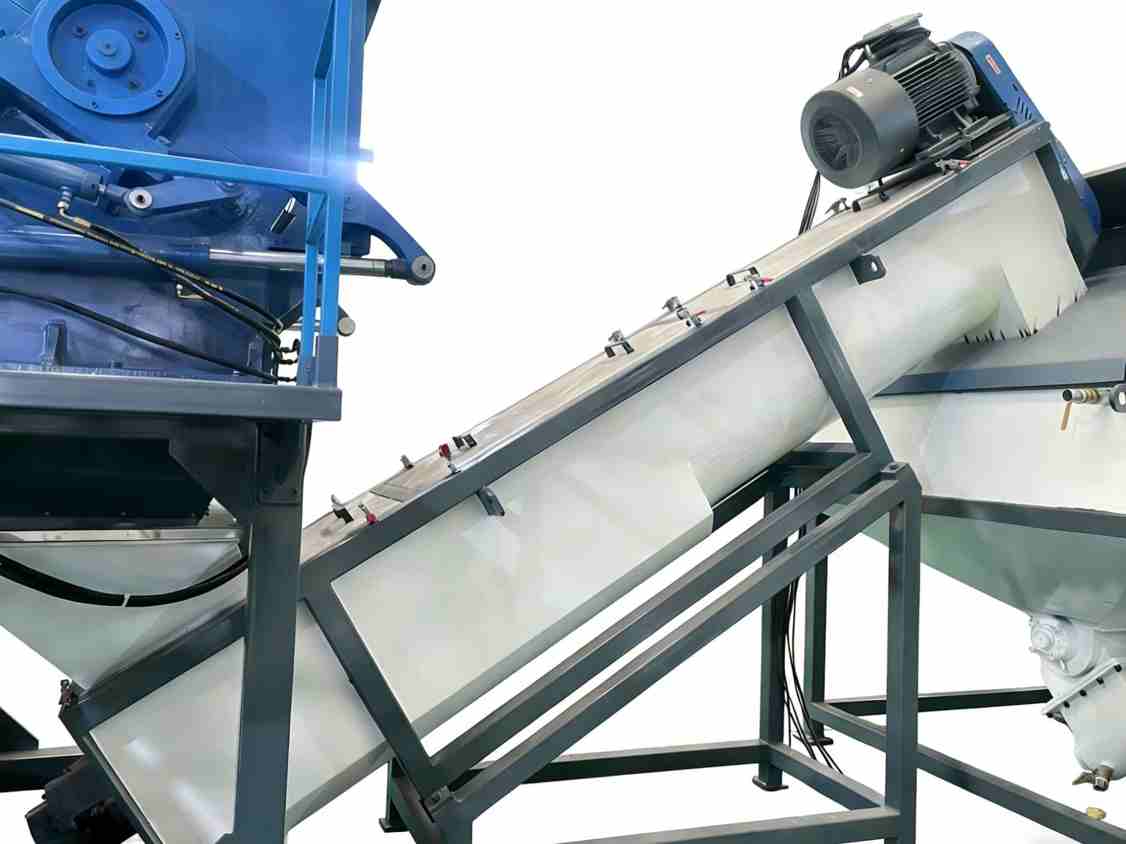

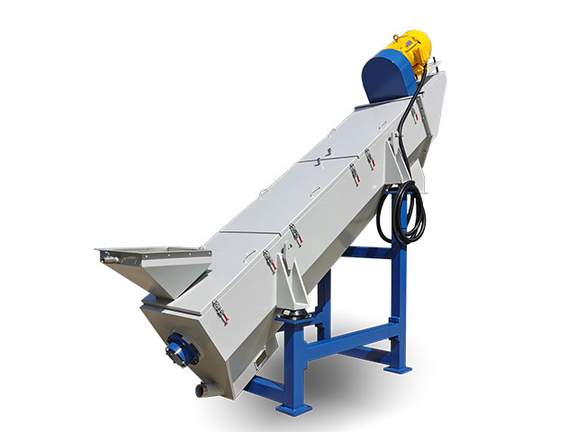

Friction Washer
The high-speed rotating screw makes the material to be thoroughly scrubbed with water, effectively washing away its impurities.

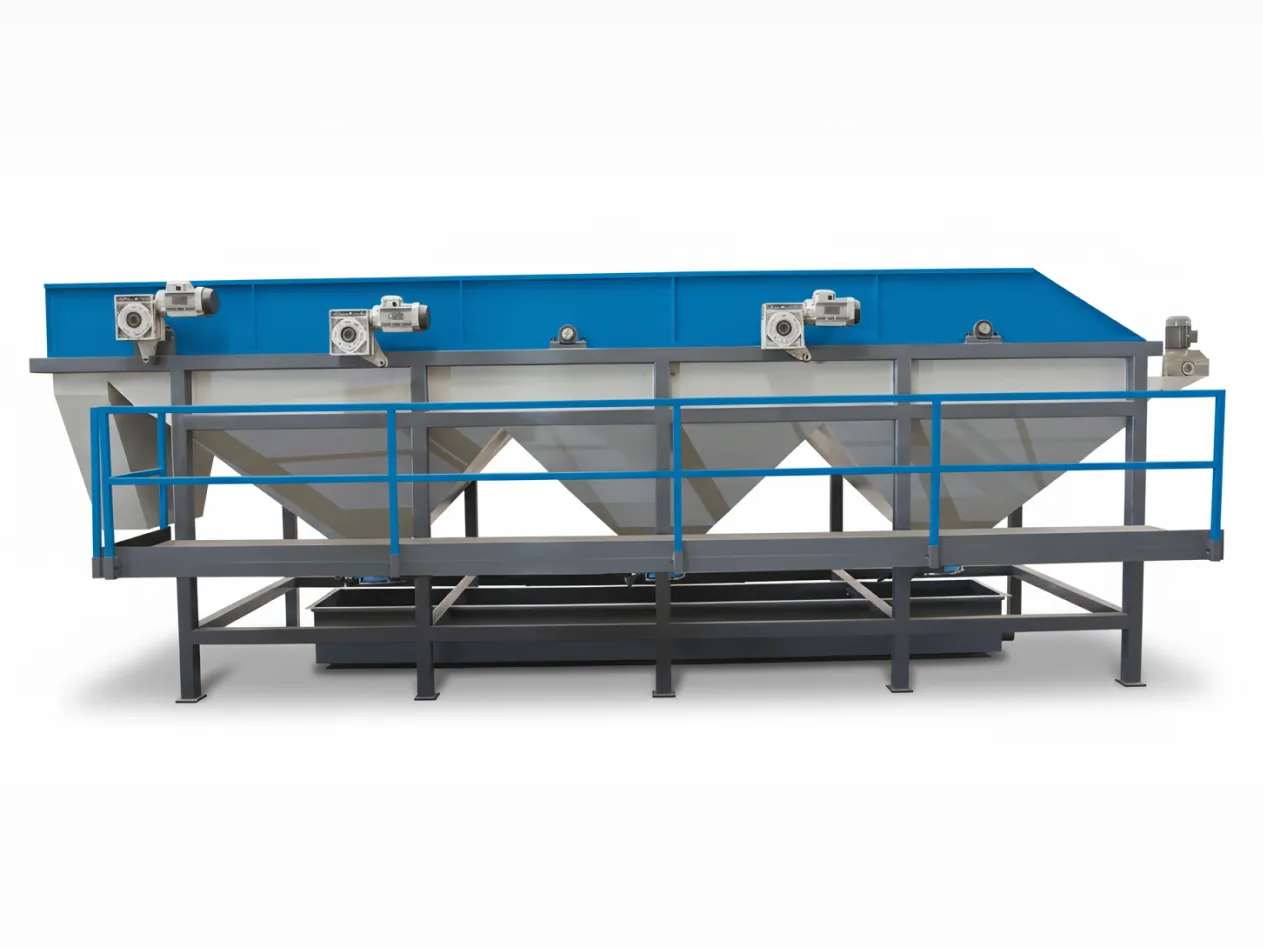

Floating Washer
Used for separating sand, pulp, and other impurities from the raw materials. The main material used is stainless steel.

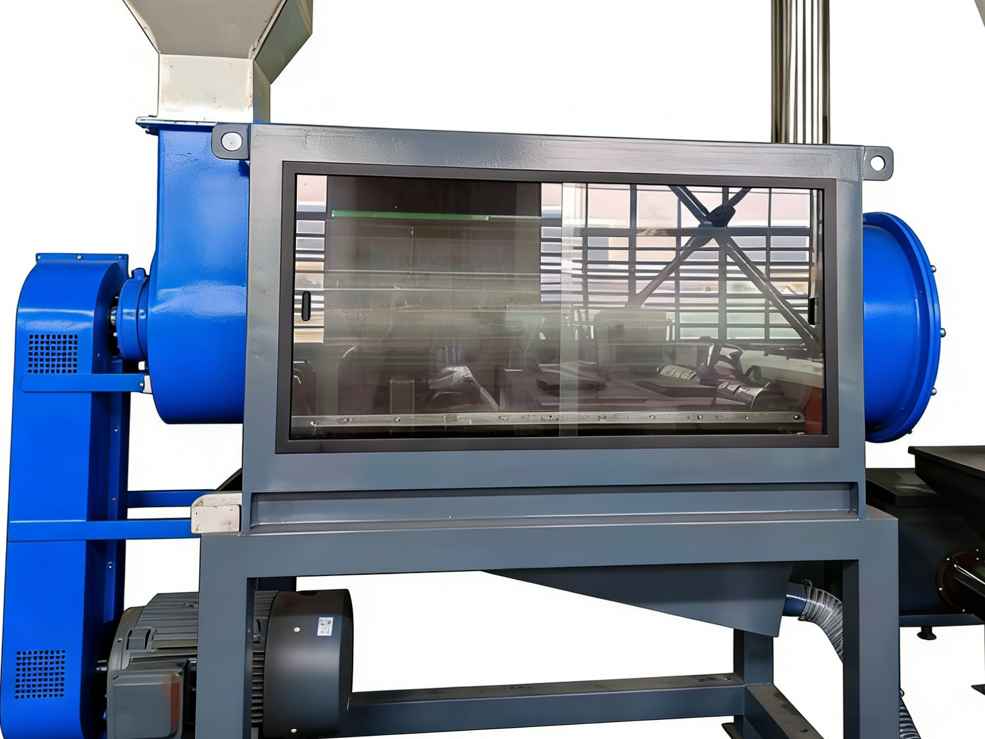

Dehydrator
High-speed centrifugal dehydration to remove moisture from the material and simultaneously eliminate residual impurities.
Squeezer
The material is squeezed and partially plasticizing through the screw compress, allowing for direct pelletizing with higher output.

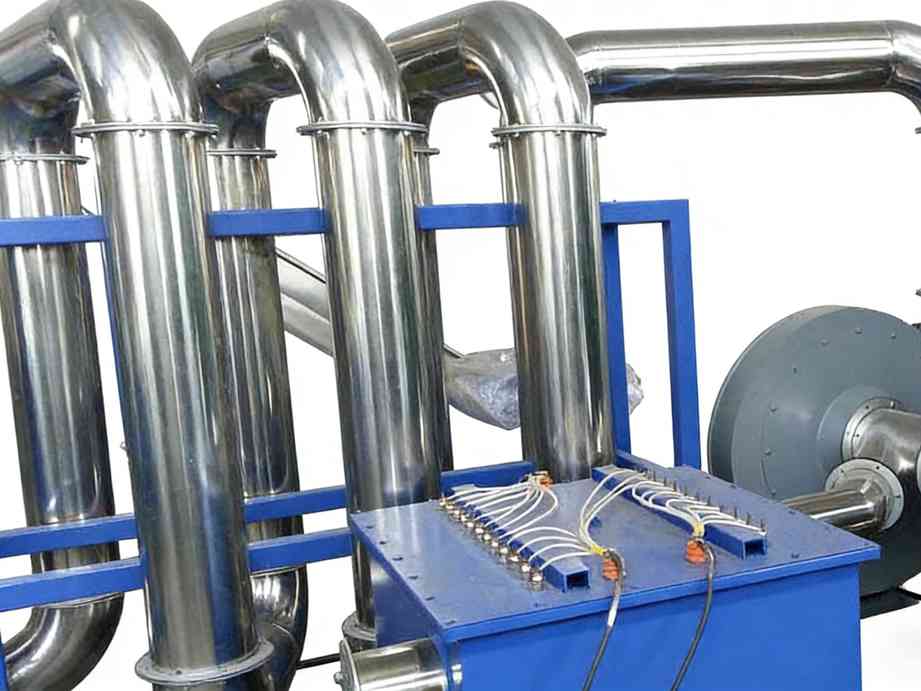

Hot air dryer
For drying the material through hot air pipeline, which is also insulated with thermal insulation material to reduce energy consumption loss.

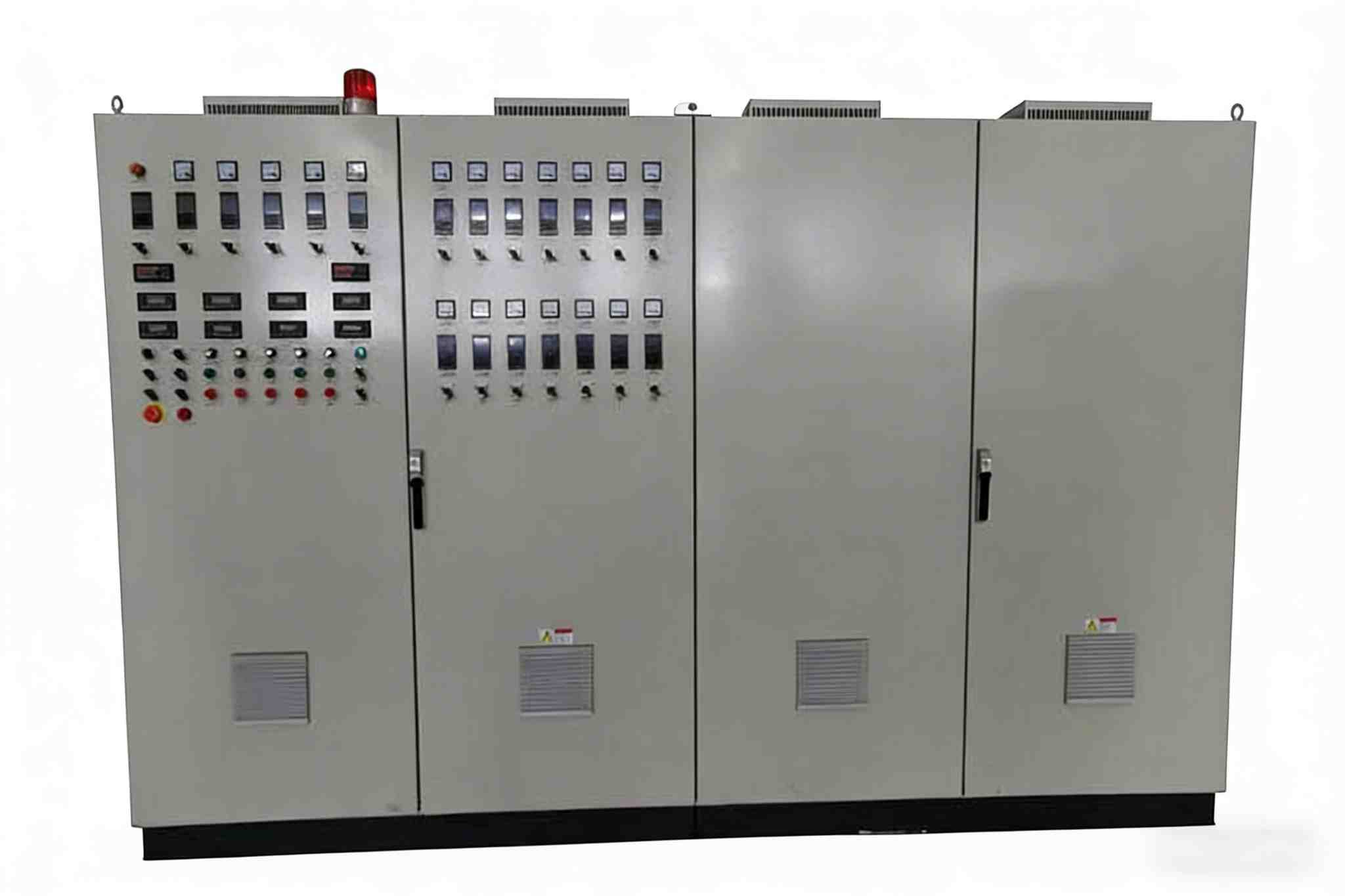

Control Cabinet
For control the operation of the entire line. Electrical components adopts famous brands such as ABB, Siemens, Omron, Schneider etc.

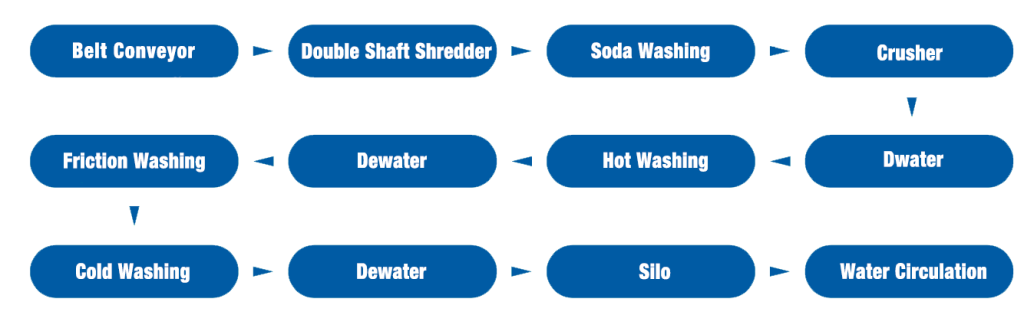

Working Process
Technical Data
| Output Capacity (kg/h) | Installation Power (kW) | Floor Space (㎡) | Operators | Steam (kg/h) | Water Consumption (m³/h) |
|---|---|---|---|---|---|
| 500 | 220 | 400 | 8 | 350 | 1 |
| 1000 | 500 | 750 | 10 | 500 | 3 |
| 2000 | 700 | 1000 | 12 | 800 | 5 |
| 3000 | 900 | 1500 | 12 | 1000 | 6 |
